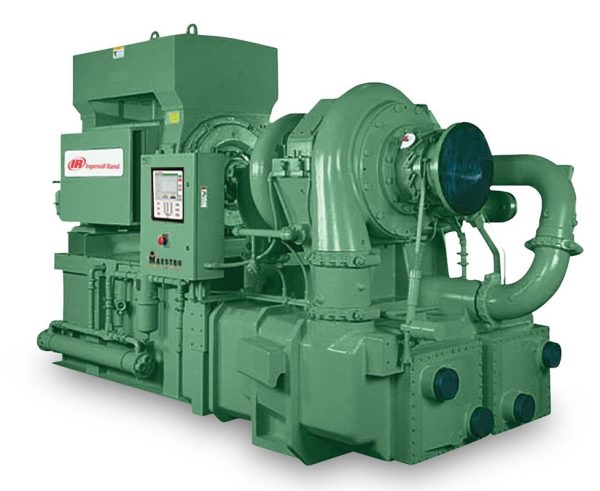

The MSG TURBO-AIR 11000 is a more standardised compressor with a shorter lead time. The MSG TURBO-AIR 11000 was designed from the ground up with input from real end users, ensuring this machine was built to customer needs for a more efficient and easy to maintain compressor.

Categories: , ,
  • Previous Product
  • TURBO DryPak™ Centrifugal Air Compressor and HOC Dryer Package
  • Next Product
  • MSG® TURBO-AIR® 6000 Centrifugal Air Compressor

Description

GAS FLOW ARRANGEMENT

MSG TURBO-AIR centrifugal compressors feature an advanced arrangement of gas flow components. Advantages of this arrangement include:

Directed gas movement to reduce turbulence-induced friction
Air is cooled after each stage to provide high isothermal efficiency

Air Flow Diagram

Compressor inlet
First stage compressor volute
Refrigerant in
Refrigerant out
First stage intercooler
Second stage compressor volute
Second stage intercooler
Third stage compressor volute
Compressor discharge
